Тип на свързване:  Three phase
Ефективност:  98.7% max. efficiency
Вх. напрежение, V:  Max. input voltage: 1100 V, Rated input voltage: 600 V, MPPT Operating voltage range: 200 V ~ 1000 V, Number of Inputs: 8, Number of MPP Trackers: 4
Изх. мощност, W:  40 000 W Rated AC active power
Изх. мощност, VA:  44 000 VA Max. AC apparent power
Изх. напрежение, V:  Rated output voltage: 230 Vac / 400 Vac / 480 Vac, 3W/N+PE
Честота, Hz:  Rated AC grid frequency: 50 Hz / 60 Hz
Изх. ток, A:  Max. output current: 63.8 A, Rated output current: 57.8 A
Видове защита:  IP66, Anti-Islanding protection, AC overcurrent protection, DC Reverse-polarity Protection, DC/AC Surge Arrester, DC Insulation Resistance Detection, Arc fault protection, Ripple Receiver Control
Индикатори:  LED indicators
Тип на охлаждане:  Natural convection
Работна температура:  -25 ~ 60 °C
Диапазон на влажността при експлоатация:  0% RH ~ 100% RH
Интерфейс:  RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional), 4G / 3G / 2G via Smart Dongle-4G (Optional)
Сигурност:  EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Стандарти:  IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P. O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No. 7, NRS 097-2-1, AS/NZS 4777.2, DEWA
Цвят:  White
Размери (Ш, Д, В), mm:  640 x 530 x 270 mm
Тегло, kg:  43 kg
Други:  DC Connector: Staubli MC4, AC Connector: Waterproof Connector + OT/DT Terminal; Topology: Transformerless; Adjustable Power Factor Range: 0.8 LG ... 0.8 LD; Nighttime Power Consum. :

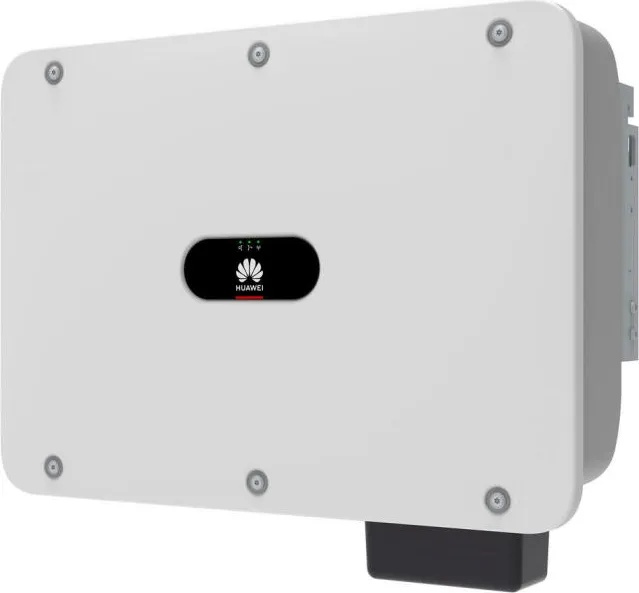

Продукт известен още и като SUN 2000 40 KTL M 3 40 kW, SUN200040KTLM340kW, SUN2000 40KTL M3 40 kW, SUN2000-40KTL-M340kW, SUN 2000-40KTL-M3 40 kW
